EME: MMI
Two multimode interference (MMI) couplers in silicon at 1550 nm: a 1x2 splitter whose length is
swept around the self-imaging estimate, and a 2x2 coupler whose width and length are optimized
together for a 50/50 split with optimize().
Both couplers are silicon strips 220 nm thick in silica, built from three straight sections: the
access waveguides, the MMI body and the output waveguides. A window around each access waveguide
gives it its own port, so the S-matrix names each arm, and boundary_condition='TE-v' folds the
window to halve the solve.
The self-imaging lengths that follow from the beat length \(L_\pi\) are only estimates for a high-contrast guide, and the best images form a few percent shorter. A length sweep reuses the solved modes and solves nothing, so the example sweeps the length first and lets the optimizer refine from the best image. Light reflected between the two ends of the MMI body makes the split ripple with the length, and each trough of that ripple is a local optimum, so the optimizer is kept within one ripple period of its starting point.
The optimized 2x2 splits close to 50/50, with the through port leading the cross port by close to the ideal 90 degrees, and it keeps a balanced split over several tens of nanometers around 1550 nm. Every console report also says where the rest of the power goes: the higher-order modes of the output waveguides, the reflection back into the input, and the light scattered into the cladding. The access waveguides meet the MMI straight, with no tapers, which a fabricated device adds to lower the loss.
This code example is licensed under the BSD 3-Clause License.
import sys
import numpy as np
import emodeconnection as emc
from emodeconnection import Port, Bounds, Parameter, Objective
from matplotlib import pyplot as plt
## Set simulation parameters
wavelength = 1550 # [nm] wavelength
dx, dy = 25, 25 # [nm] resolution
h_core = 220 # [nm] silicon thickness
w_access = 1000 # [nm] access waveguide width at the MMI
pitch = 1500 # [nm] center-to-center spacing of the access waveguides
access_length = 2000 # [nm] length of each access section
w_1x2 = 3000 # [nm] 1x2 MMI width, its outputs at +/- w_1x2 / 4
w_2x2 = 4500 # [nm] 2x2 MMI width, its ports at +/- w_2x2 / 6
window_height = 2000 # [nm]
num_modes = 30 # [-]
## The cross-sections are silicon strips in silica, symmetric top to bottom,
## so boundary_condition='TE-v' folds the window at its middle and keeps the
## TE-like modes, the ones an MMI for TE light is designed with. A window
## around each access waveguide gives it its own port.
d = pitch / 2 # [nm] each access waveguide's distance from the center
window = lambda x: Bounds(window_width=pitch, window_height=window_height, offset=(x, 0.0))
arms = lambda side: [Port(name='a', side=side, window=window(-d)),
Port(name='b', side=side, window=window(d))]
def mmi(name, width, num_inputs):
"""Declare an MMI with one or two inputs and two outputs, and return its beat length."""
em = emc.EMode(emode_cmd=sys.argv[1:], simulation_name=name)
em.settings(
wavelength=wavelength, x_resolution=dx, y_resolution=dy,
window_width=width + 2000, window_height=window_height,
num_modes=num_modes, boundary_condition='TE-v',
background_material='SiO2')
em.shape(name='core', material='Si', height=h_core, etch_depth=h_core,
position=[0, window_height / 2], mask=w_access)
em.label_profile(name='single')
em.shape(name='core', mask=[w_access, w_access], mask_offset=[-d, d])
em.label_profile(name='pair')
## The MMI body is the default profile, so a 'shape, core, mask' key
## changes its width. Its two lowest modes give the beat length L_pi.
em.shape(name='core', mask=width, mask_offset=0)
em.FDM()
n_eff = np.real(np.asarray(em.get('effective_index')))
beat_length = wavelength / (2 * (n_eff[0] - n_eff[1]))
if num_inputs == 1:
em.straight_section(name='in', profile='single', length=access_length)
else:
em.straight_section(name='in', profile='pair', length=access_length, ports=arms('left'))
em.straight_section(name='mmi', profile='_default', length=beat_length)
em.straight_section(name='out', profile='pair', length=access_length, ports=arms('right'))
return em, beat_length
def report(label, S, into):
"""Print where the power launched into port `into` goes."""
a = np.abs(S.block('out.a', into)[0, 0]) ** 2
b = np.abs(S.block('out.b', into)[0, 0]) ** 2
reflected = np.sum(np.abs(S.block(into, into)[:, 0]) ** 2)
higher = (np.sum(np.abs(S.block('out.a', into)[1:, 0]) ** 2)
+ np.sum(np.abs(S.block('out.b', into)[1:, 0]) ** 2))
print(f'{label} power in output a: {a:.4f}')
print(f'{label} power in output b: {b:.4f}')
print(f'{label} excess loss: {-10 * np.log10(a + b):.3f} dB')
print(f'{label} imbalance, a over b: {round(10 * np.log10(a / b), 3) + 0.0:.3f} dB')
print(f'{label} reflection: {10 * np.log10(reflected):.1f} dB')
print(f'{label} power in higher-order output modes: {higher:.4f}')
print(f'{label} power scattered out of the guides: {1 - a - b - reflected - higher:.4f}')
## ---------------------------------------------------------------- the 1x2
## One input on the axis forms two images at 3 L_pi / 8. That estimate uses
## only the two lowest modes, so the length is swept around it. A length
## sweep reuses the solved modes and solves nothing.
em, beat_length = mmi('mmi_1x2', w_1x2, num_inputs=1)
print(f'1x2 beat length L_pi: {beat_length:.0f} nm')
print(f'1x2 self-imaging length 3 L_pi / 8: {3 * beat_length / 8:.0f} nm')
lengths = 3 * beat_length / 8 * np.linspace(0.85, 1.1, 26) # [nm]
data = em.sweep(key='section, mmi, length', values=lengths, result='S_matrix')
T = np.array([np.abs(S.block('out.a', 'in.left')[0, 0]) ** 2
+ np.abs(S.block('out.b', 'in.left')[0, 0]) ** 2 for S in data['S_matrix']])
best_length = lengths[np.argmax(T)]
print(f'1x2 best length: {best_length:.0f} nm')
em.straight_section(name='mmi', length=best_length)
em.EME()
report('1x2', em.get('S_matrix'), 'in.left')

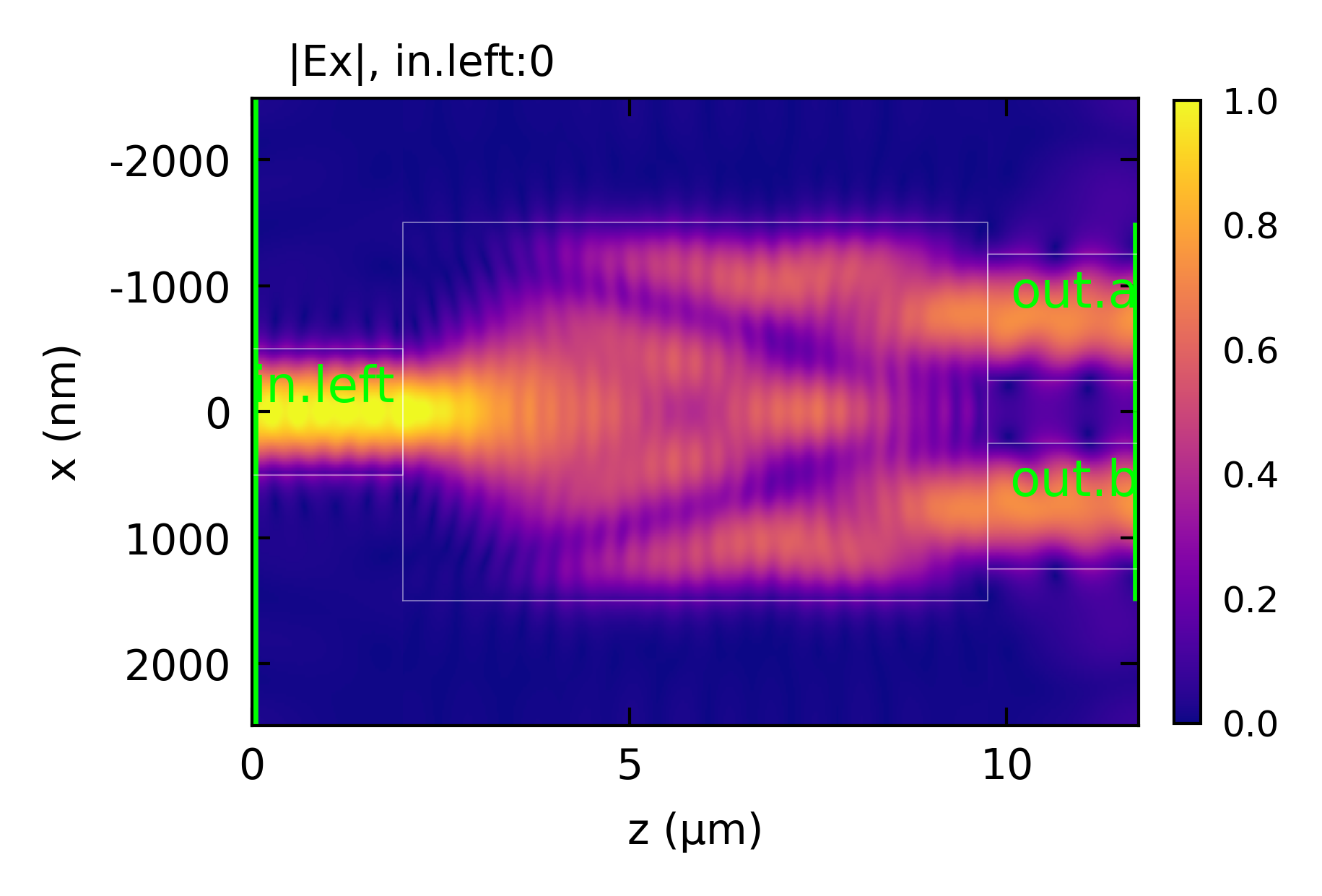

em.plot(component='Ex', plot_function='abs', plane='z-x', view='layout',
file_name='mmi_1x2_field', file_type='png')
em.close()

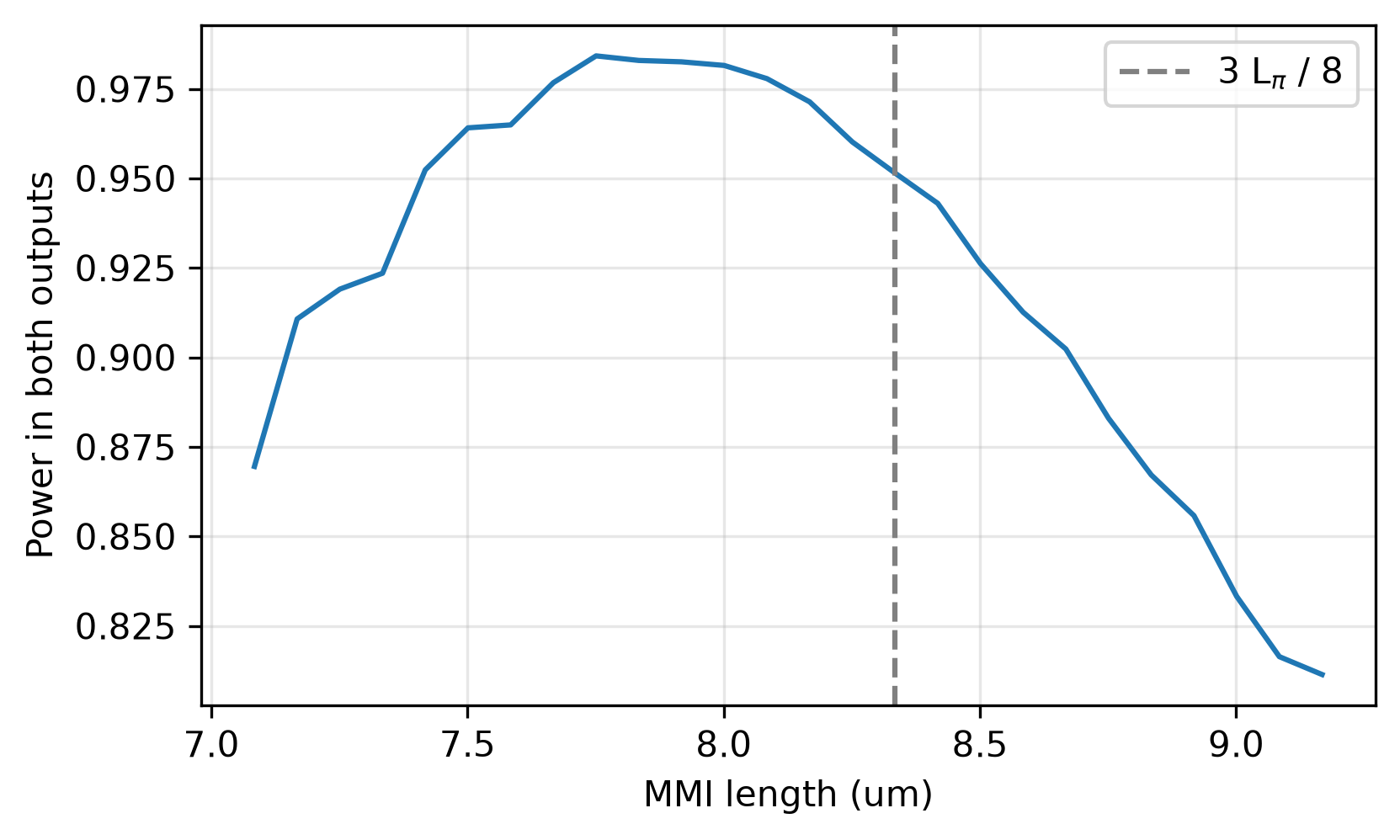

plt.figure(figsize=(6, 3.5))
plt.plot(lengths / 1e3, T)
plt.axvline(3 * beat_length / 8e3, color='gray', ls='--', label='3 L$_\\pi$ / 8')
plt.xlabel('MMI length (um)')
plt.ylabel('Power in both outputs')
plt.legend()
plt.grid(True, alpha=0.3)
plt.savefig('mmi_1x2_length.png', dpi=300, bbox_inches='tight')
## ---------------------------------------------------------------- the 2x2
## Inputs at a third of the way from the axis to each edge excite only the
## modes that image in pairs, so a 50/50 split forms at L_pi / 2.
em, beat_length = mmi('mmi_2x2', w_2x2, num_inputs=2)
x0 = beat_length / 2
print(f'2x2 beat length L_pi: {beat_length:.0f} nm')
print(f'2x2 self-imaging length L_pi / 2: {x0:.0f} nm')
## How far both outputs are from 0.5, the quantity the optimizer minimizes
through = Objective('S_power', out='out.a', into='in.a', goal='target', target=0.5)
cross = Objective('S_power', out='out.b', into='in.a', goal='target', target=0.5)
distance = lambda S: ((np.abs(S.block('out.a', 'in.a')[0, 0]) ** 2 - 0.5) ** 2
+ (np.abs(S.block('out.b', 'in.a')[0, 0]) ** 2 - 0.5) ** 2)
## Light reflected at the two ends of the MMI body ripples the split with
## the length, with a period of about half a wavelength in the guide
## (270 nm), and every trough of that ripple is a local minimum. A length
## sweep at the starting width, which solves nothing, finds the best image.
## The optimizer then adjusts the width and the length together within
## 100 nm of it, less than half the ripple's period, so it stays in that
## trough.
lengths = x0 * np.arange(0.9, 1.05, 0.002) # [nm]
data = em.sweep(key='section, mmi, length', values=lengths, result='S_matrix')
start = lengths[np.argmin([distance(S) for S in data['S_matrix']])]
print(f'2x2 best length at {w_2x2} nm wide: {start:.0f} nm')
res = em.optimize(
parameters=[Parameter('shape, core, mask', bounds=(w_2x2 - 300, w_2x2 + 300), x0=w_2x2),
Parameter('section, mmi, length', bounds=(start - 100, start + 100), x0=start)],
objective=[through, cross],
max_evaluations=80, tolerance=1e-5)
width, length = res.x
print(f'2x2 optimizer: {res.status} after {res.evaluations} evaluations in {res.seconds:.0f} s')
print(f'2x2 optimized width: {width:.1f} nm')
print(f'2x2 optimized length: {length:.0f} nm')
## The simulation is left solved at the best point
S = em.get('S_matrix')
report('2x2', S, 'in.a')
phase_through = np.angle(S.block('out.a', 'in.a')[0, 0], deg=True)
phase_cross = np.angle(S.block('out.b', 'in.a')[0, 0], deg=True)
print(f'2x2 through-port phase: {phase_through:.1f} deg')
print(f'2x2 cross-port phase: {phase_cross:.1f} deg')
print(f'2x2 phase difference, through minus cross: '
f'{(phase_through - phase_cross + 180) % 360 - 180:.1f} deg')

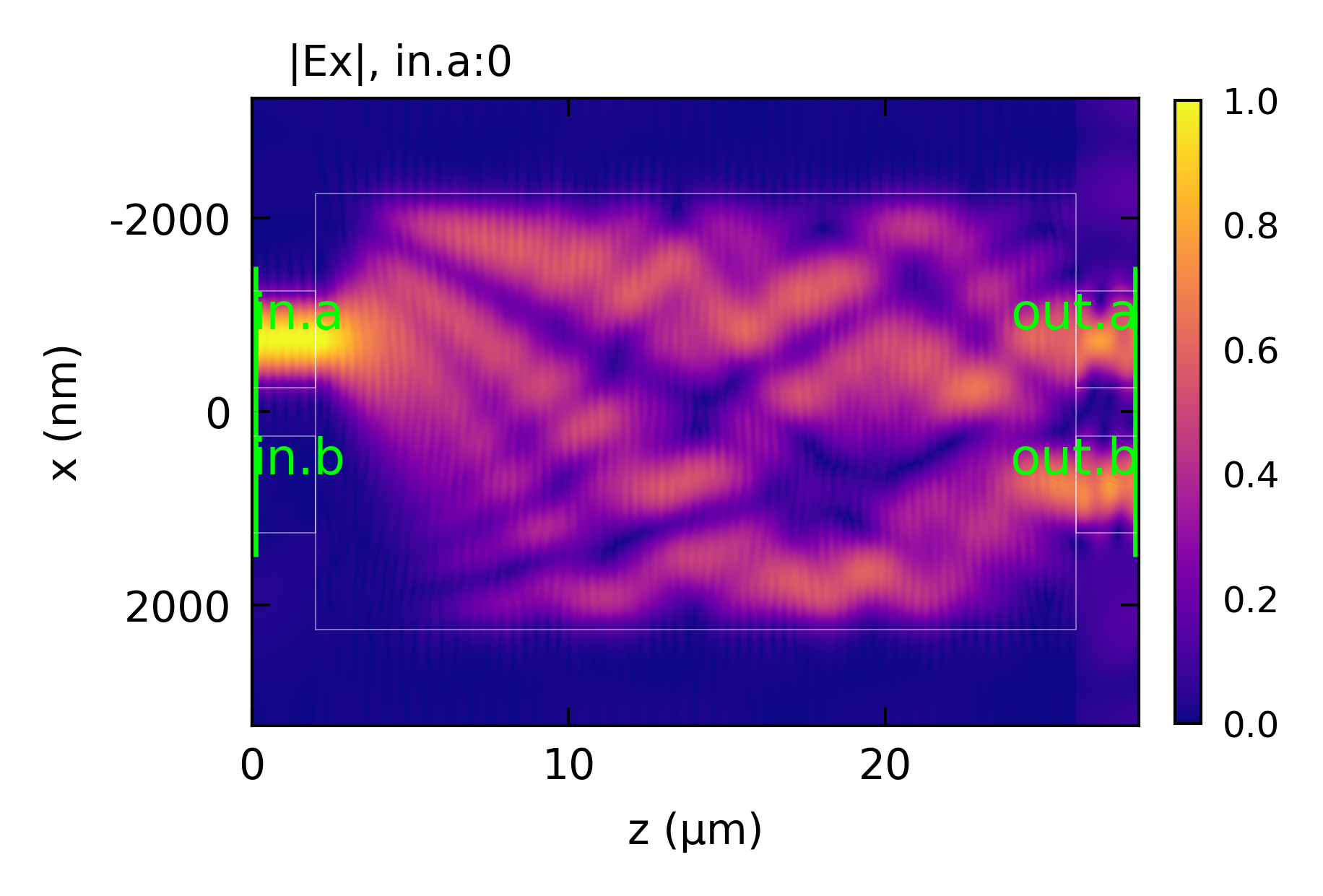

em.plot(component='Ex', plot_function='abs', plane='z-x', view='layout',
file_name='mmi_2x2_field', file_type='png')

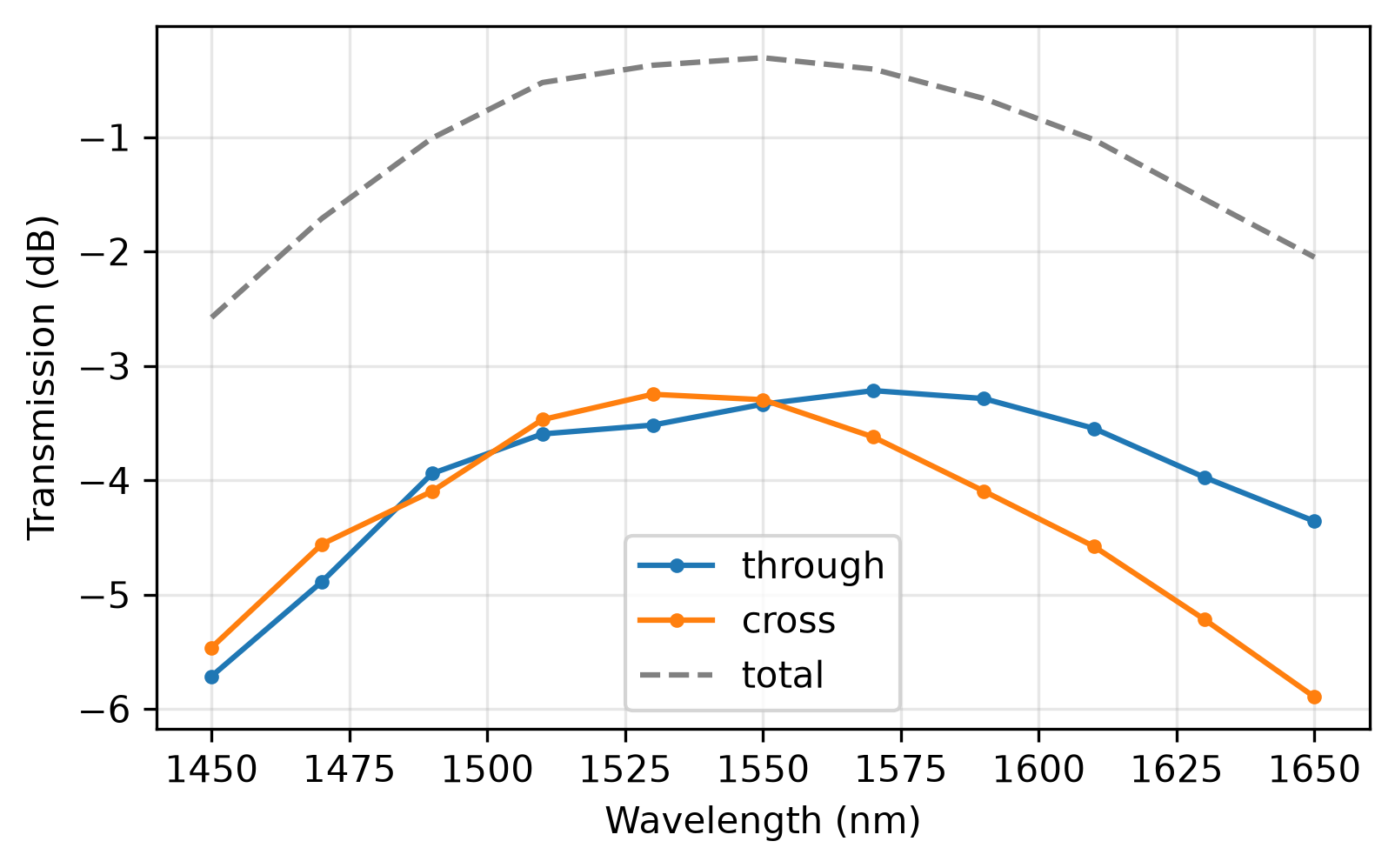

## The bandwidth of the optimized 2x2 over 200 nm. The sections are built on
## the labeled profile 'pair' and on the default profile, so the wavelength
## is set on both before each solve.
wavelengths = np.linspace(1450, 1650, 11) # [nm]
P_through, P_cross = [], []
for wl in wavelengths:
em.settings(wavelength=wl)
em.settings(profile='pair', wavelength=wl)
em.EME()
S = em.get('S_matrix')
P_through.append(np.abs(S.block('out.a', 'in.a')[0, 0]) ** 2)
P_cross.append(np.abs(S.block('out.b', 'in.a')[0, 0]) ** 2)
P_through, P_cross = np.array(P_through), np.array(P_cross)
## The band where the imbalance stays within 0.5 dB and the excess loss
## below 1 dB, read off the solved wavelengths by linear interpolation
fine = np.linspace(wavelengths[0], wavelengths[-1], 1001)
imbalance = np.interp(fine, wavelengths, 10 * np.log10(P_through / P_cross))
excess_loss = np.interp(fine, wavelengths, -10 * np.log10(P_through + P_cross))
band = fine[(np.abs(imbalance) <= 0.5) & (excess_loss <= 1)]
print(f'2x2 band, imbalance within 0.5 dB and excess loss below 1 dB, from: {band.min():.0f} nm')
print(f'2x2 band, imbalance within 0.5 dB and excess loss below 1 dB, to: {band.max():.0f} nm')
em.close()
plt.figure(figsize=(6, 3.5))
plt.plot(wavelengths, 10 * np.log10(P_through), marker='o', ms=3, label='through')
plt.plot(wavelengths, 10 * np.log10(P_cross), marker='o', ms=3, label='cross')
plt.plot(wavelengths, 10 * np.log10(P_through + P_cross), color='gray', ls='--', label='total')
plt.xlabel('Wavelength (nm)')
plt.ylabel('Transmission (dB)')
plt.legend()
plt.grid(True, alpha=0.3)
plt.savefig('mmi_2x2_spectrum.png', dpi=300, bbox_inches='tight')
Console output:
EMode3D 1.0.7 - email
Meshing completed in 0.0 sec
Solving modes completed in 1.1 sec
1x2 beat length L_pi: 22224 nm
1x2 self-imaging length 3 L_pi / 8: 8334 nm
Sweeping section parameter 'length'...
Solving EME: length = 9167.570794645791... completed in 3.9 sec
Solving EME: length = 9084.229241967192... completed in 0.5 sec
Solving EME: length = 9000.887689288595... completed in 0.5 sec
Solving EME: length = 8917.546136609997... completed in 0.5 sec
Solving EME: length = 8834.204583931398... completed in 0.5 sec
Solving EME: length = 8750.8630312528... completed in 0.5 sec
Solving EME: length = 8667.521478574201... completed in 0.5 sec
Solving EME: length = 8584.179925895603... completed in 0.5 sec
Solving EME: length = 8500.838373217006... completed in 0.5 sec
Solving EME: length = 8417.496820538407... completed in 0.5 sec
Solving EME: length = 8334.15526785981... completed in 0.5 sec
Solving EME: length = 8250.813715181212... completed in 0.5 sec
Solving EME: length = 8167.472162502613... completed in 0.5 sec
Solving EME: length = 8084.130609824015... completed in 0.5 sec
Solving EME: length = 8000.789057145416... completed in 0.5 sec
Solving EME: length = 7917.447504466818... completed in 0.5 sec
Solving EME: length = 7834.105951788221... completed in 0.5 sec
Solving EME: length = 7750.764399109623... completed in 0.5 sec
Solving EME: length = 7667.4228464310245... completed in 0.5 sec
Solving EME: length = 7584.081293752427... completed in 0.5 sec
Solving EME: length = 7500.739741073829... completed in 0.6 sec
Solving EME: length = 7417.39818839523... completed in 0.5 sec
Solving EME: length = 7334.056635716632... completed in 0.5 sec
Solving EME: length = 7250.715083038034... completed in 0.5 sec
Solving EME: length = 7167.373530359436... completed in 0.5 sec
Solving EME: length = 7084.031977680837... completed in 0.5 sec
completed in 16.9 sec
1x2 best length: 7751 nm
Solving S-matrices...
Solving section: in... completed in 0.0 sec
Solving section: mmi... completed in 0.0 sec
Solving section: out... completed in 0.0 sec
completed in 0.0 sec
1x2 power in output a: 0.4921
1x2 power in output b: 0.4921
1x2 excess loss: 0.069 dB
1x2 imbalance, a over b: 0.000 dB
1x2 reflection: -26.9 dB
1x2 power in higher-order output modes: 0.0045
1x2 power scattered out of the guides: 0.0092
Exited EMode
EMode3D 1.0.7 - email
Meshing completed in 0.0 sec
Solving modes completed in 1.5 sec
2x2 beat length L_pi: 49996 nm
2x2 self-imaging length L_pi / 2: 24998 nm
Sweeping section parameter 'length'...
Solving EME: length = 26248.14318521147... completed in 3.3 sec
Solving EME: length = 26198.146722001537... completed in 0.4 sec
Solving EME: length = 26148.150258791615... completed in 0.4 sec
Solving EME: length = 26098.153795581682... completed in 0.4 sec
Solving EME: length = 26048.157332371764... completed in 0.4 sec
Solving EME: length = 25998.16086916183... completed in 0.4 sec
Solving EME: length = 25948.16440595191... completed in 0.4 sec
Solving EME: length = 25898.167942741977... completed in 0.4 sec
Solving EME: length = 25848.171479532055... completed in 0.4 sec
Solving EME: length = 25798.175016322122... completed in 0.4 sec
Solving EME: length = 25748.178553112204... completed in 0.4 sec
Solving EME: length = 25698.18208990227... completed in 0.4 sec
Solving EME: length = 25648.18562669235... completed in 0.4 sec
Solving EME: length = 25598.189163482417... completed in 0.5 sec
Solving EME: length = 25548.192700272495... completed in 0.4 sec
Solving EME: length = 25498.196237062562... completed in 0.4 sec
Solving EME: length = 25448.199773852644... completed in 0.4 sec
Solving EME: length = 25398.20331064271... completed in 0.4 sec
Solving EME: length = 25348.20684743279... completed in 0.4 sec
Solving EME: length = 25298.210384222857... completed in 0.4 sec
Solving EME: length = 25248.213921012935... completed in 0.4 sec
Solving EME: length = 25198.217457803003... completed in 0.4 sec
Solving EME: length = 25148.220994593084... completed in 0.4 sec
Solving EME: length = 25098.22453138315... completed in 0.4 sec
Solving EME: length = 25048.22806817323... completed in 0.4 sec
Solving EME: length = 24998.231604963297... completed in 0.4 sec
Solving EME: length = 24948.235141753372... completed in 0.4 sec
Solving EME: length = 24898.238678543446... completed in 0.4 sec
Solving EME: length = 24848.24221533352... completed in 0.4 sec
Solving EME: length = 24798.245752123592... completed in 0.4 sec
Solving EME: length = 24748.249288913667... completed in 0.4 sec
Solving EME: length = 24698.25282570374... completed in 0.4 sec
Solving EME: length = 24648.256362493812... completed in 0.4 sec
Solving EME: length = 24598.259899283887... completed in 0.4 sec
Solving EME: length = 24548.26343607396... completed in 0.4 sec
Solving EME: length = 24498.266972864032... completed in 0.5 sec
Solving EME: length = 24448.270509654107... completed in 0.4 sec
Solving EME: length = 24398.27404644418... completed in 0.4 sec
Solving EME: length = 24348.277583234252... completed in 0.4 sec
Solving EME: length = 24298.281120024327... completed in 0.4 sec
Solving EME: length = 24248.2846568144... completed in 0.4 sec
Solving EME: length = 24198.288193604472... completed in 0.4 sec
Solving EME: length = 24148.291730394547... completed in 0.4 sec
Solving EME: length = 24098.29526718462... completed in 0.4 sec
Solving EME: length = 24048.298803974692... completed in 0.4 sec
Solving EME: length = 23998.302340764767... completed in 0.4 sec
Solving EME: length = 23948.30587755484... completed in 0.4 sec
Solving EME: length = 23898.309414344913... completed in 0.4 sec
Solving EME: length = 23848.312951134987... completed in 0.4 sec
Solving EME: length = 23798.31648792506... completed in 0.4 sec
Solving EME: length = 23748.320024715133... completed in 0.4 sec
Solving EME: length = 23698.323561505207... completed in 0.4 sec
Solving EME: length = 23648.32709829528... completed in 0.4 sec
Solving EME: length = 23598.330635085353... completed in 0.4 sec
Solving EME: length = 23548.334171875427... completed in 0.4 sec
Solving EME: length = 23498.337708665502... completed in 0.4 sec
Solving EME: length = 23448.341245455573... completed in 0.4 sec
Solving EME: length = 23398.344782245647... completed in 0.4 sec
Solving EME: length = 23348.348319035722... completed in 0.4 sec
Solving EME: length = 23298.351855825793... completed in 0.4 sec
Solving EME: length = 23248.355392615867... completed in 0.4 sec
Solving EME: length = 23198.358929405942... completed in 0.4 sec
Solving EME: length = 23148.362466196013... completed in 0.4 sec
Solving EME: length = 23098.366002986088... completed in 0.4 sec
Solving EME: length = 23048.369539776162... completed in 0.4 sec
Solving EME: length = 22998.373076566233... completed in 0.4 sec
Solving EME: length = 22948.376613356308... completed in 0.5 sec
Solving EME: length = 22898.380150146382... completed in 0.5 sec
Solving EME: length = 22848.383686936453... completed in 0.4 sec
Solving EME: length = 22798.387223726528... completed in 0.4 sec
Solving EME: length = 22748.390760516602... completed in 0.4 sec
Solving EME: length = 22698.394297306673... completed in 0.4 sec
Solving EME: length = 22648.397834096748... completed in 0.4 sec
Solving EME: length = 22598.401370886822... completed in 0.4 sec
Solving EME: length = 22548.404907676893... completed in 0.4 sec
Solving EME: length = 22498.408444466968... completed in 0.4 sec
completed in 34.4 sec
2x2 best length at 4500 nm wide: 23998 nm
Evaluation 0: shape, core, mask = 4500, section, mmi, length = 23998.302, objective 0.0023482157 (1.87 sec)
Evaluation 1: shape, core, mask = 4650, section, mmi, length = 23998.302, objective 0.036699685 (2.50 sec)
Evaluation 2: shape, core, mask = 4500, section, mmi, length = 24048.302, objective 0.0023683407 (0.40 sec)
Evaluation 3: shape, core, mask = 4350, section, mmi, length = 23998.302, objective 0.04705888 (2.61 sec)
Evaluation 4: shape, core, mask = 4500, section, mmi, length = 23948.302, objective 0.0024998768 (0.40 sec)
Evaluation 5: shape, core, mask = 4509.8269, section, mmi, length = 24017.445, objective 0.0023380028 (2.48 sec)
Evaluation 6: shape, core, mask = 4513.3643, section, mmi, length = 24029.889, objective 0.0023795618 (2.51 sec)
Evaluation 7: shape, core, mask = 4509.6145, section, mmi, length = 24004.945, objective 0.0023532808 (2.52 sec)
Evaluation 8: shape, core, mask = 4494.8448, section, mmi, length = 24017.688, objective 0.0024509977 (2.49 sec)
Evaluation 9: shape, core, mask = 4504.322, section, mmi, length = 24022.096, objective 0.002312403 (2.45 sec)
Evaluation 10: shape, core, mask = 4504.7059, section, mmi, length = 24017.098, objective 0.0023133875 (2.47 sec)
Evaluation 11: shape, core, mask = 4506.2111, section, mmi, length = 24020.833, objective 0.0023136024 (2.53 sec)
Evaluation 12: shape, core, mask = 4507.6698, section, mmi, length = 24022.659, objective 0.0023186783 (2.53 sec)
Evaluation 13: shape, core, mask = 4505.2054, section, mmi, length = 24023.311, objective 0.0023118001 (2.45 sec)
Evaluation 14: shape, core, mask = 4505.2457, section, mmi, length = 24022.289, objective 0.0023119031 (2.52 sec)
Evaluation 15: shape, core, mask = 4505.3951, section, mmi, length = 24023.807, objective 0.0023118562 (2.56 sec)
Evaluation 16: shape, core, mask = 4503.7143, section, mmi, length = 24023.256, objective 0.0023136937 (2.50 sec)
Evaluation 17: shape, core, mask = 4505.0762, section, mmi, length = 24023.044, objective 0.0023118001 (2.49 sec)
Evaluation 18: shape, core, mask = 4506.6871, section, mmi, length = 24023.233, objective 0.0023143734 (2.47 sec)
Evaluation 19: shape, core, mask = 4505.1081, section, mmi, length = 24023.377, objective 0.0023117845 (2.43 sec)
Evaluation 20: shape, core, mask = 4505.1235, section, mmi, length = 24023.524, objective 0.0023117802 (2.44 sec)
Evaluation 21: shape, core, mask = 4505.1378, section, mmi, length = 24023.672, objective 0.0023117775 (2.50 sec)
Evaluation 22: shape, core, mask = 4505.1728, section, mmi, length = 24023.872, objective 0.002311778 (2.53 sec)
Evaluation 23: shape, core, mask = 4504.8252, section, mmi, length = 24023.677, objective 0.0023118561 (2.56 sec)
Evaluation 24: shape, core, mask = 4505.1131, section, mmi, length = 24023.776, objective 0.0023117752 (2.51 sec)
Evaluation 25: shape, core, mask = 4505.1138, section, mmi, length = 24023.923, objective 0.0023117745 (2.55 sec)
Evaluation 26: shape, core, mask = 4505.2622, section, mmi, length = 24023.931, objective 0.0023117959 (2.52 sec)
Evaluation 27: shape, core, mask = 4505.0599, section, mmi, length = 24023.97, objective 0.002311778 (2.56 sec)
Evaluation 28: shape, core, mask = 4505.1142, section, mmi, length = 24023.897, objective 0.0023117745 (2.52 sec)
Evaluation 29: shape, core, mask = 4505.1156, section, mmi, length = 24023.914, objective 0.0023117745 (2.54 sec)
Evaluation 30: shape, core, mask = 4505.125, section, mmi, length = 24023.904, objective 0.0023117746 (2.54 sec)
Evaluation 31: shape, core, mask = 4505.1439, section, mmi, length = 24023.917, objective 0.0023117753 (2.54 sec)
Evaluation 32: shape, core, mask = 4505.1161, section, mmi, length = 24023.919, objective 0.0023117745 (2.53 sec)
Evaluation 33: shape, core, mask = 4505.1171, section, mmi, length = 24023.929, objective 0.0023117745 (2.49 sec)
Evaluation 34: shape, core, mask = 4505.1101, section, mmi, length = 24023.919, objective 0.0023117745 (2.52 sec)
Evaluation 35: shape, core, mask = 4505.1163, section, mmi, length = 24023.921, objective 0.0023117745 (2.58 sec)
Evaluation 36: shape, core, mask = 4505.1221, section, mmi, length = 24023.919, objective 0.0023117745 (2.58 sec)
Optimization converged after 37 evaluations in 90.9 sec: best evaluation 32, objective 0.0023117745
2x2 optimizer: converged after 37 evaluations in 91 s
2x2 optimized width: 4505.1 nm
2x2 optimized length: 24024 nm
2x2 power in output a: 0.4640
2x2 power in output b: 0.4681
2x2 excess loss: 0.305 dB
2x2 imbalance, a over b: -0.039 dB
2x2 reflection: -32.9 dB
2x2 power in higher-order output modes: 0.0331
2x2 power scattered out of the guides: 0.0343
2x2 through-port phase: -40.4 deg
2x2 cross-port phase: -127.7 deg
2x2 phase difference, through minus cross: 87.4 deg
Solving S-matrices...
Solving section: in... completed in 0.0 sec
Solving section: mmi... completed in 0.0 sec
Solving section: out... completed in 0.0 sec
completed in 0.0 sec
Solving S-matrices...
Solving section: in... completed in 0.0 sec
Solving section: mmi... completed in 0.0 sec
Solving section: out... completed in 0.0 sec
completed in 0.0 sec
Solving S-matrices...
Solving section: in... completed in 0.0 sec
Solving section: mmi... completed in 0.0 sec
Solving section: out... completed in 0.0 sec
completed in 0.0 sec
Solving S-matrices...
Solving section: in... completed in 0.0 sec
Solving section: mmi... completed in 0.0 sec
Solving section: out... completed in 0.0 sec
completed in 0.0 sec
Solving S-matrices...
Solving section: in... completed in 0.0 sec
Solving section: mmi... completed in 0.0 sec
Solving section: out... completed in 0.0 sec
completed in 0.0 sec
Solving S-matrices...
Solving section: in... completed in 0.0 sec
Solving section: mmi... completed in 0.0 sec
Solving section: out... completed in 0.0 sec
completed in 0.0 sec
Solving S-matrices...
Solving section: in... completed in 0.0 sec
Solving section: mmi... completed in 0.0 sec
Solving section: out... completed in 0.0 sec
completed in 0.0 sec
Solving S-matrices...
Solving section: in... completed in 0.0 sec
Solving section: mmi... completed in 0.0 sec
Solving section: out... completed in 0.0 sec
completed in 0.0 sec
Solving S-matrices...
Solving section: in... completed in 0.0 sec
Solving section: mmi... completed in 0.0 sec
Solving section: out... completed in 0.0 sec
completed in 0.0 sec
Solving S-matrices...
Solving section: in... completed in 0.0 sec
Solving section: mmi... completed in 0.0 sec
Solving section: out... completed in 0.0 sec
completed in 0.0 sec
Solving S-matrices...
Solving section: in... completed in 0.0 sec
Solving section: mmi... completed in 0.0 sec
Solving section: out... completed in 0.0 sec
completed in 0.0 sec
2x2 band, imbalance within 0.5 dB and excess loss below 1 dB, from: 1490 nm
2x2 band, imbalance within 0.5 dB and excess loss below 1 dB, to: 1575 nm
Exited EMode
Figures:
